流化床干燥系統無水葡萄糖所占的比重是多少？
來源：http://www.nttdr.com 日期：2020-04-23 發布人：admin
無水葡萄糖流化床枯燥體系晶體比重1.55
Crystal specific gravity of dry system in anhydrous glucose fluidized bed 1.55
（一）、技術說明
（1） . technical description

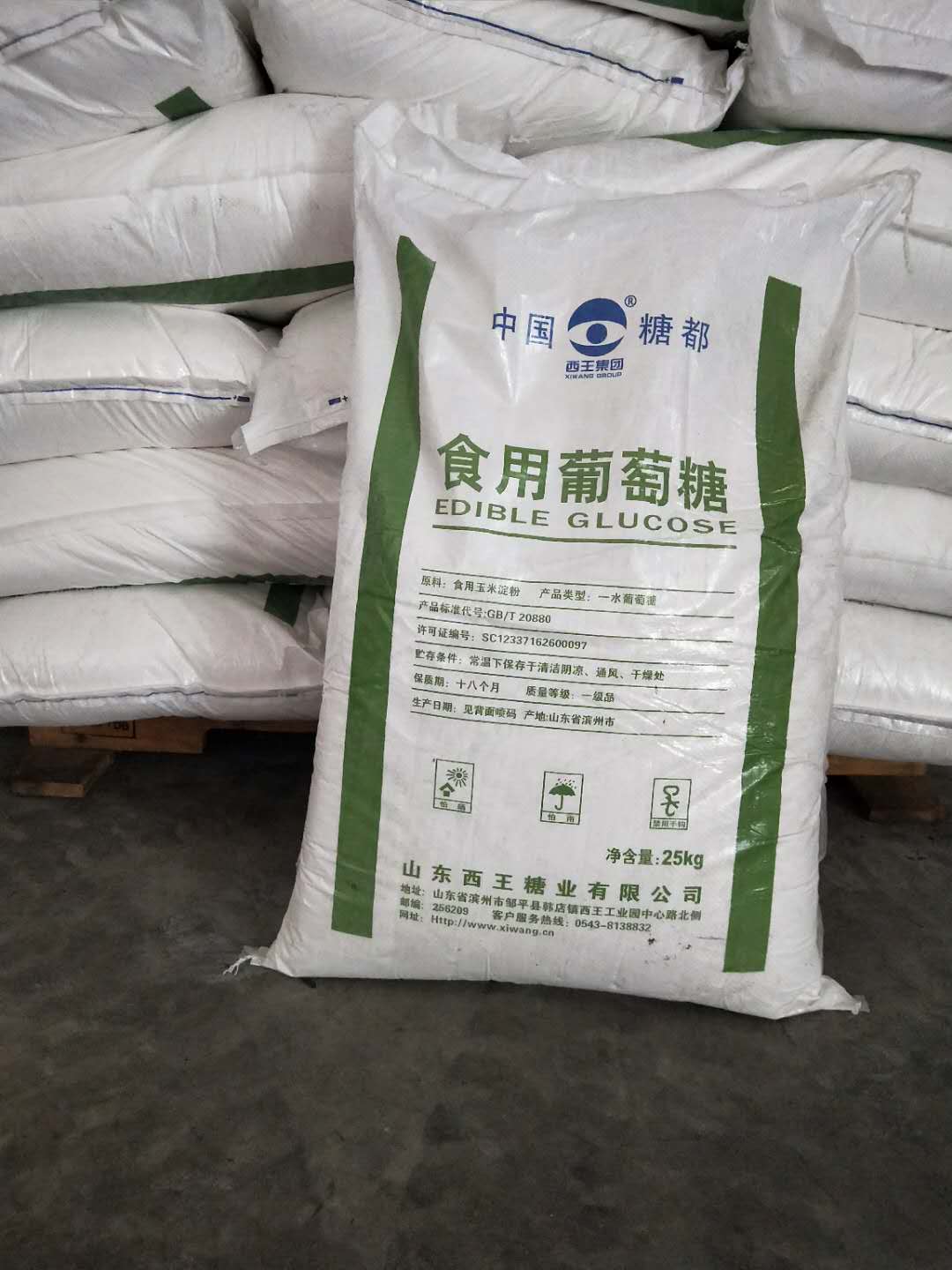

1）物料稱號及性質：無水葡萄糖
1) Material title and property: anhydrous glucose
白色結晶性顆粒或粉末，晶體比重1.55，晶體尺度一般小于1毫米
White crystalline particle or powder, crystal specific gravity 1.55, crystal size generally less than 1mm
熔點146～150℃
Melting point 146-150 ℃
2）單套進料量：8500kg/h
2) Single set feeding capacity: 8500Kg / h
進料水份： 5%
Feed moisture: 5%
進料溫度：60～65℃
Feeding temperature: 60-65 ℃
補白：該體系也可生產1.4噸/小時的一水結晶葡萄糖，進料水分14%、溫度20℃，出料水分8%、溫度28℃。
Whitening: the system can also produce 1.4t/h of crystalline glucose in one water, with 14% of feed water, 20% of temperature, 8% of discharge water and 28% of temperature.
3）枯燥體系要求：
3) Boring system requirements:
烘干進程晶體溫度：＜50℃
Crystal temperature in drying process: ＜ 50 ℃
烘干進程尾風溫度：＜45℃ 蒸汽壓力 ：0.2～0.3Mpa
Drying process tail air temperature: ＜ 45 ℃ steam pressure: 0.2 ～ 0.3MPa
進入枯燥體系的空氣符合10萬級GMP凈化要求，過濾體系設置壓差計，傳感器
The air entering the dry system meets the requirements of 100000 level GMP purification, and the filter system is equipped with differential pressure gauge and sensor
提供通信接口
Provide communication interface
風機電機選用變頻電機，風溫、料溫機物料運送選用全自動操控，鼓風機機殼為不銹鋼SUS304材質，選用透明食品級無接口軟銜接，軟銜接與設備接口處易于密封拆裝無泄漏；
Frequency conversion motor is selected for fan motor, and full automatic control is selected for air temperature and material temperature machine material transportation. The blower shell is made of stainless steel SUS304, transparent food grade, no interface, soft connection and equipment interface are easy to be sealed and disassembled without leakage;
四聯絞龍等絞龍不得設吊瓦，其他設備不得有研磨物進入制品，沸騰床軸封下設接物盤，并有真空吸走研磨物裝置。
No lifting pad shall be set for the quad skein and other skeins, and no Abrasives shall be allowed to enter into the products for other equipment. Under the shaft seal of the boiling bed, there shall be a receiving plate, and there shall be a device for vacuum suction of abrasives.
枯燥用風機機殼、葉輪選用碳鋼噴塑；鼓風機機殼、葉輪選用不銹鋼sus304
The case and impeller of dry fan are made of carbon steel; the case and impeller of blower are made of stainless steel SUS304
潔凈區枯燥設備電氣部分選用防爆級別：沸騰床（一切電機）、振動篩、研磨機：DIPA21 TA,T3YFB系列電機IP65 ；冷風段送風機、枯燥段送風機、預干段送風機、冷卻水段水膜除塵、冷卻段引風機、枯燥段水膜除塵、枯燥段引風機、預枯燥段水膜除塵、與枯燥段引風機、氣力運送引風機、氣力運送送風機、小送風機： DIPA22 TA,T3YFB系列電機IP54
The electrical part of dry equipment in clean area shall be explosion-proof: boiling bed (all motors), vibrating screen, grinder: dipa21 TA, T3yfb series motor IP65; cold section blower, dry section blower, pre dry section blower, cooling water section water film dedusting, cooling section induced draft fan, dry section water film dedusting, dry section induced draft fan, pre dry section water film dedusting, and dry section induced draft fan, pneumatic conveying induced draft fan, pneumatic conveying forced draft fan, small forced draft fan: dipa22 TA, t3yfb series motor IP54
設備及料倉內部做鏡面拋光處理，外部做亞拋光處理
The inside of the equipment and bin shall be polished with mirror surface, and the outside shall be sub polished
尾氣收回選用水磨除塵，要求尾氣夾藏粉塵＜120mg/m3；零補水。
Water mill is used for dust removal of tail gas recovery, and the dust contained in tail gas is required to be less than 120mg / m3; zero water make-up is required.
4）制品要求：
4) Product requirements:
出料：無水葡萄糖
Discharge: anhydrous glucose
制品出料溫度：＜23℃
Product discharge temperature: ＜ 23 ℃
出料水分要求：＜0.1% 水分操控要求實現自動化操控
Discharge moisture requirement: ＜ 0.1% moisture control requirement to achieve automatic control
制品產出率（20目篩下物）：干對干＞99.8%
Product output rate (under 20 mesh screen): dry to dry > 99.8%
不得有枯燥體系帶進的異物，無水糖在今后貯存進程中不得有因枯燥帶來的結塊現象
There shall be no foreign matter brought in by the boring system, and there shall be no caking of anhydrous sugar caused by the boring in the future storage process
